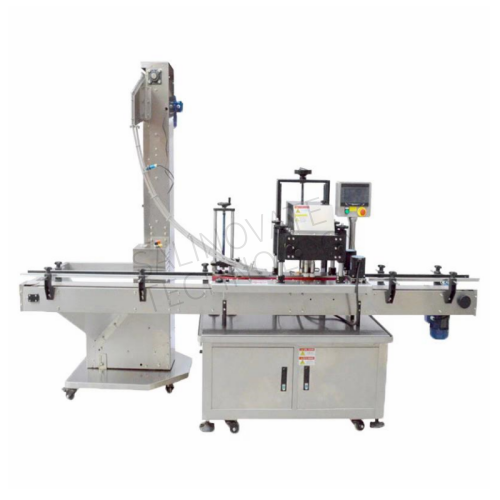

15-50BPM Round Cap Capping Machine Bottle Capping Machine: Working Principle
1)Automatic bottle delivery: Bottles enter the capping station through a conveyor belt and are fixed by a bottle clamping mechanism.
2)Automatic capping: The bottle cap is sorted by a vibrating disc or elevator and accurately delivered to the bottle mouth.
3)Rubbing and tightening: Four silicone rubbing wheels (usually driven by a speed regulating motor) rotate simultaneously to tighten the bottle cap through friction and pressure, ensuring sealing.
4)Bottle inspection: Bottles that have completed capping are transported to the next process, and some models are equipped with photoelectric detection to ensure that there are no missing caps or poor capping.
15-50BPM Round Cap Capping Machine Bottle Capping Machine: Features
1)High compatibility
Suitable for different specifications of bottle caps (diameter 20-60mm) , easy to adjust, no need to replace molds.
2)Wear resistant silicone wheels
The capping wheel is made of wear-resistant silicone material to avoid scratching the bottle cap and provide stable friction.
3)High degree of automation
Four independent speed regulating motors are used to control the supply of caps, bottle clamping, conveying, and cap rolling, ensuring stable operation and integration into the filling production line.
4)Adjustable elasticity
By adjusting the motor speed or air pressure, the capping force can be controlled to meet the sealing requirements of different bottle caps.
5)High production efficiency
The production speed can reach about 15-50BPM(depending on the model), suitable for large-scale production.
15-50BPM Round Cap Capping Machine Bottle Capping Machine: Application
Food and beverage: sauce, edible oil, beverage bottle cap tightening.
Pharmaceutical industry: drug bottle, spray bottle sealing.
Daily chemical industry: bottle cap packaging for shampoo and skincare products.
