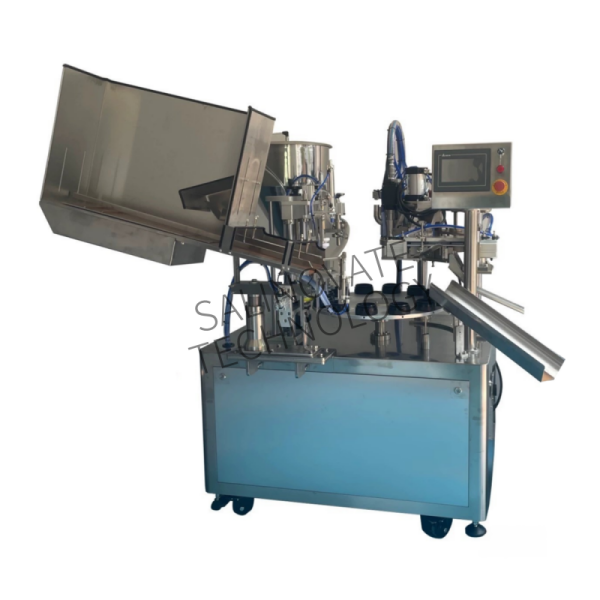

Automatic Plastic Tube Filling and Sealing Machine Introduction:
The whole tube filling sealing machine is driven by electricity, PLC touch screen control. The tube feeding is designed automatically with the automatic feeding hopper to accelerate the production.
The color mark orientation device help to ensure the color mark of the tube at the right position then after sealing the mark is in the middle.
After the tube feeding and color mark orientation, the machine conducts the filling job, heat sealing job(cooling together with this part in case of the overheating), trimming, code moulding and then tube discharging job.
Cosmetic Cream Filling Machine Technical Data:
1)Filling volume: 5-20ml/15-150ml/20-200ml/30-300ml
2)Acceptable tube type: plastic tube/laminated tube
3)Tube diameter range: 13-50mm
4)Tube height range: 80-220mm
5)Compressed air: 0.4-0.6MPa(prepared by the user)
Cream Ointment Filling Machine Application:
Face wash cream, moisturizer, sunscreen cream, toothpaste, pet food paste, pharmaceutical ointment, etc often adopt plastic tube/laminated tube as package. In the production of these materials, the plastic tube filling machine will be used.
