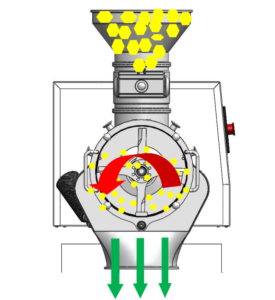

Pharmaceutical Grinder Machine Medicine Powder Grinder: Principle
The crushed material is radially ejected under the centrifugal force of the high-speed rotating blade, and the particles, the inner wall of the crushing chamber, and the blades undergo high-speed hammering, shearing, and collision. The particles that meet the requirements enter the receiving device through the mesh screen to complete the crushing.
Pharmaceutical Grinder Machine Medicine Powder Grinder: Advantages

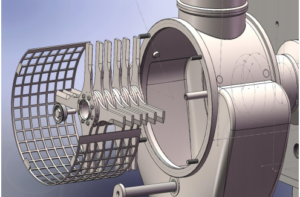

Modular design: quickly assemble and disassemble the rotors and sieve
High sanitary standard: the standard machine material adopts SS316L; online cleaning and sterilization, 2.2bar steam pressure is supported
Fast grinding speed and fine powder output: 1000-12,000RPM, adjustable; the powder size is mainly within 30-300um

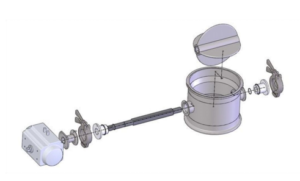

Even feeding speed: pneumatic valve control is designed at the feeding part
Low Powder Dust Design: During the entire crushing process, the upper feeding port and lower receiving port can be made in a closed state (the chamber is vented through a breathing port), thereby achieving no dust generation during the crushing operation
Pharmaceutical Grinder Machine Medicine Powder Grinder: Application
Amoxicillin, Cefminox Sodium, Sorbitol, Vitamin C, Amino Acid Mixtures, etc
Powder size: speed is adjustable then from coarse to fine output size, 30-300um
